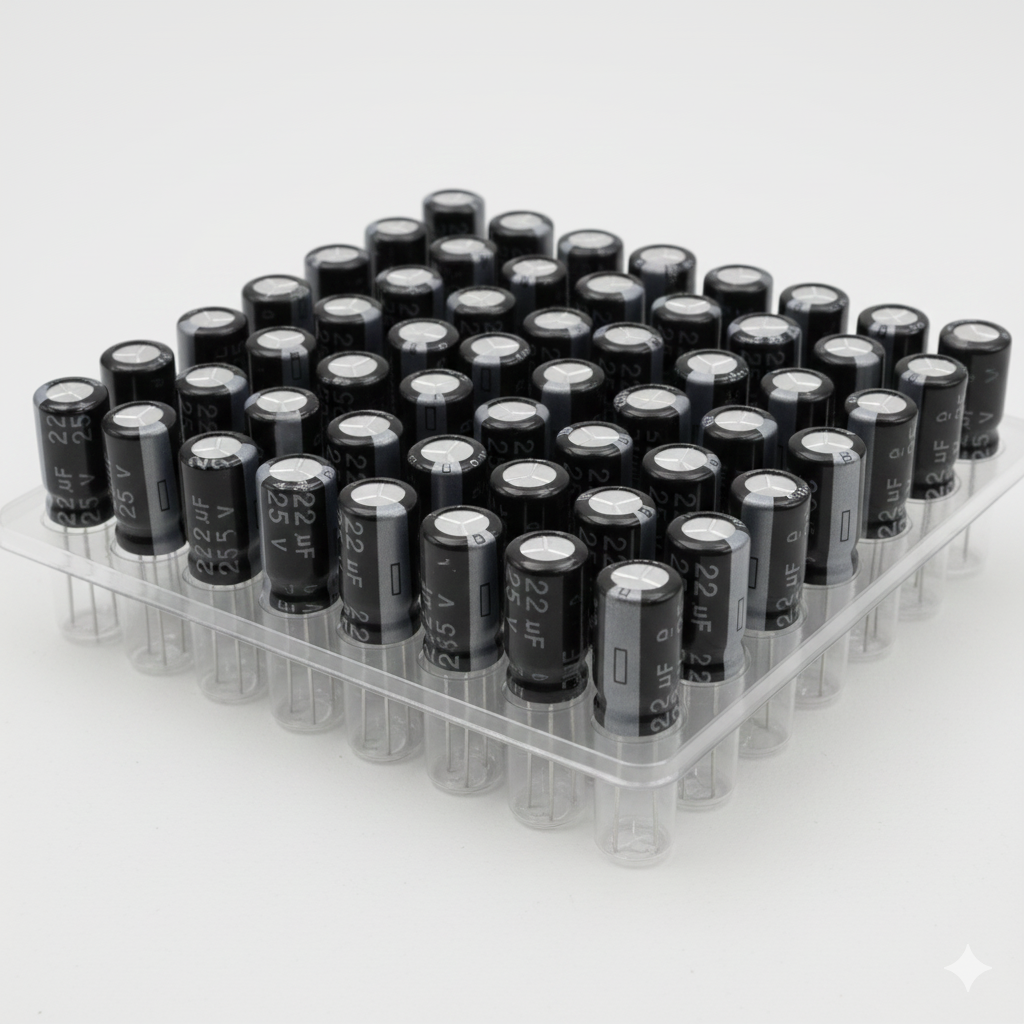

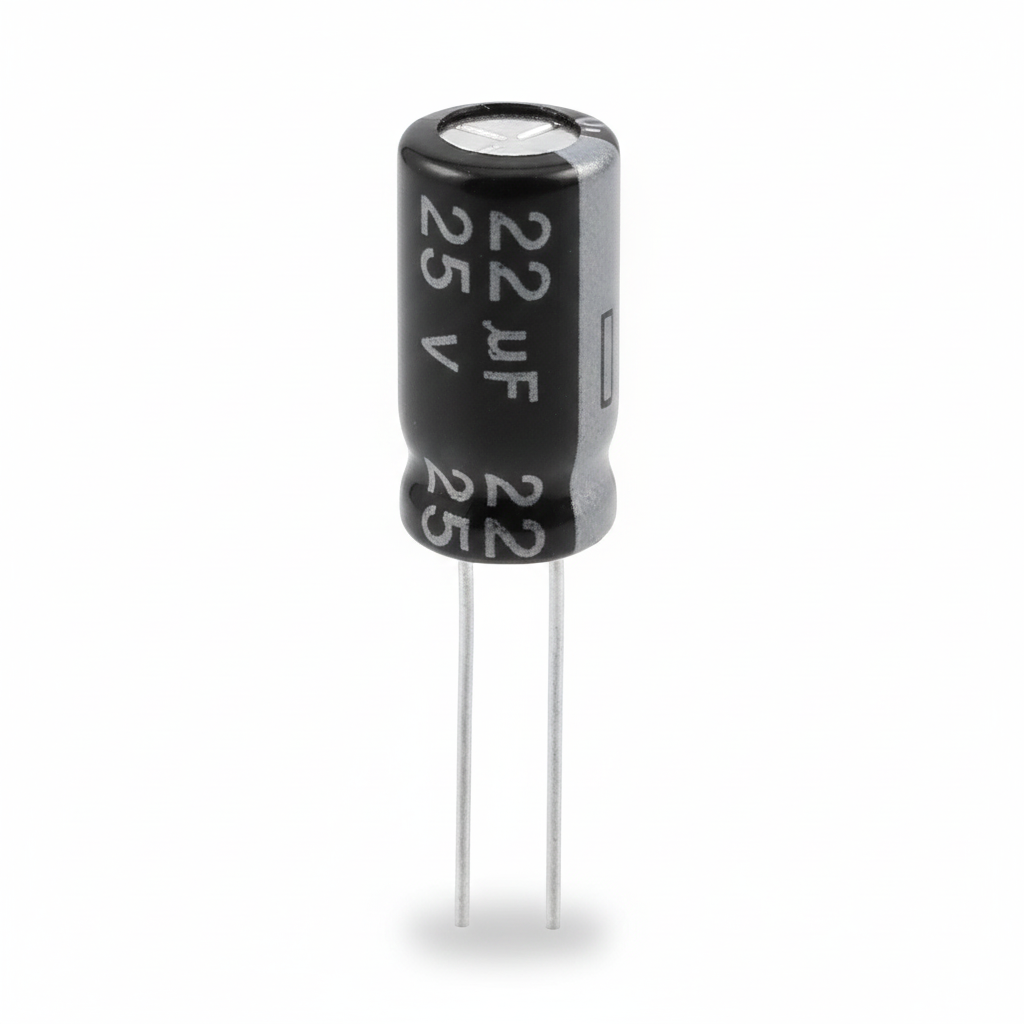

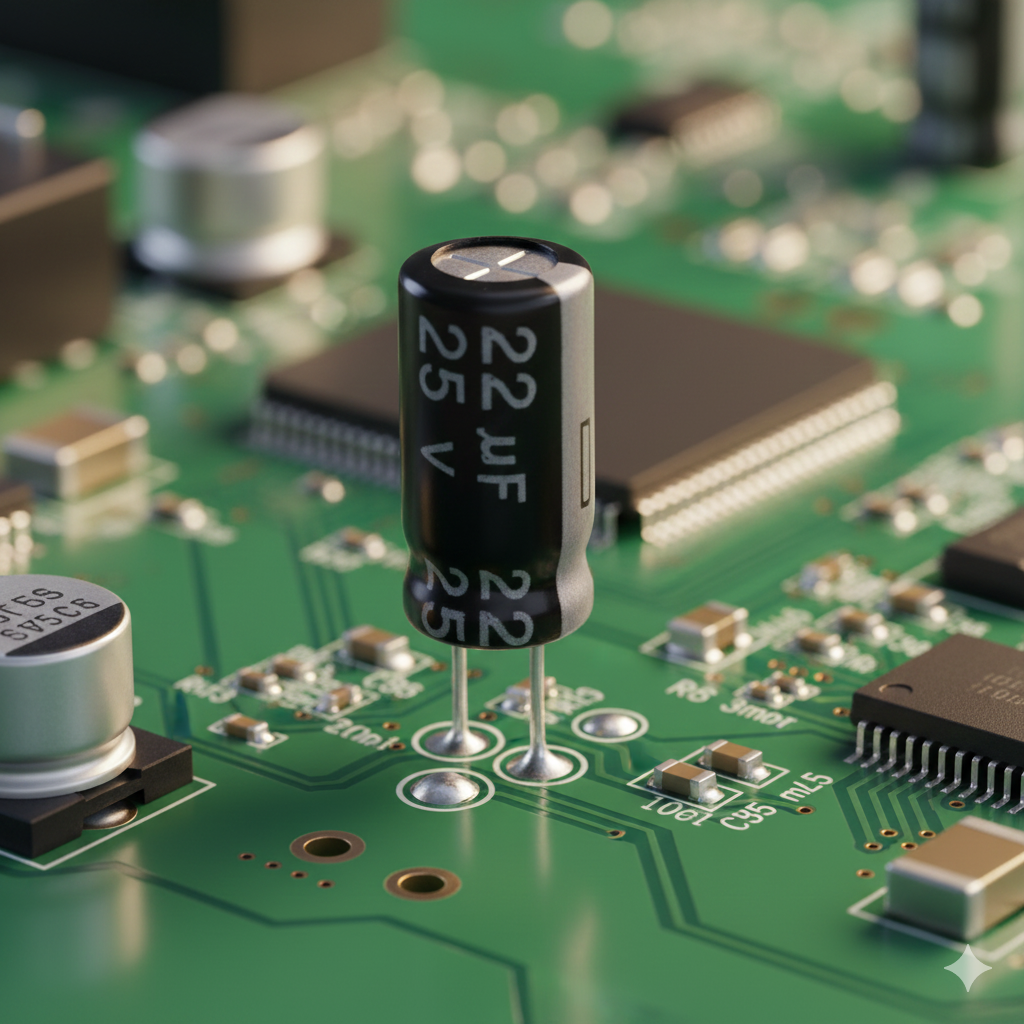

22uF 25V Electrolytic Capacitor
Sale price
Rs. 5.00
Regular price
Rs. 9.00
Skip to product information
22uF 25V Electrolytic Capacitor
Sale price
Rs. 5.00
Regular price
Rs. 9.00
🔧 22µF 25V Electrolytic Capacitor – Specification
| Parameter | Value |
|---|---|
| Capacitance | 22µF (Microfarad) |
| Rated Voltage | 25V DC |
| Tolerance | ±20% |
| Type | Aluminum Electrolytic |
| Polarity | Polarized |
| Operating Temperature | -40°C to +105°C |
| ESR (Equivalent Series Resistance) | Low ESR |
| Ripple Current | 45mA – 80mA (at 100kHz, 105°C) |
| Lead Spacing | 2mm / 2.5mm |
| Case Size (Dia × Height) | 5mm × 11mm (typical) |
| Leakage Current | ≤ 3µA (after 2 minutes) |
| Lifetime | 2000 – 3000 hours @ 105°C |
| Mounting Type | Through Hole |
| Frequency Range | Up to 100kHz |
