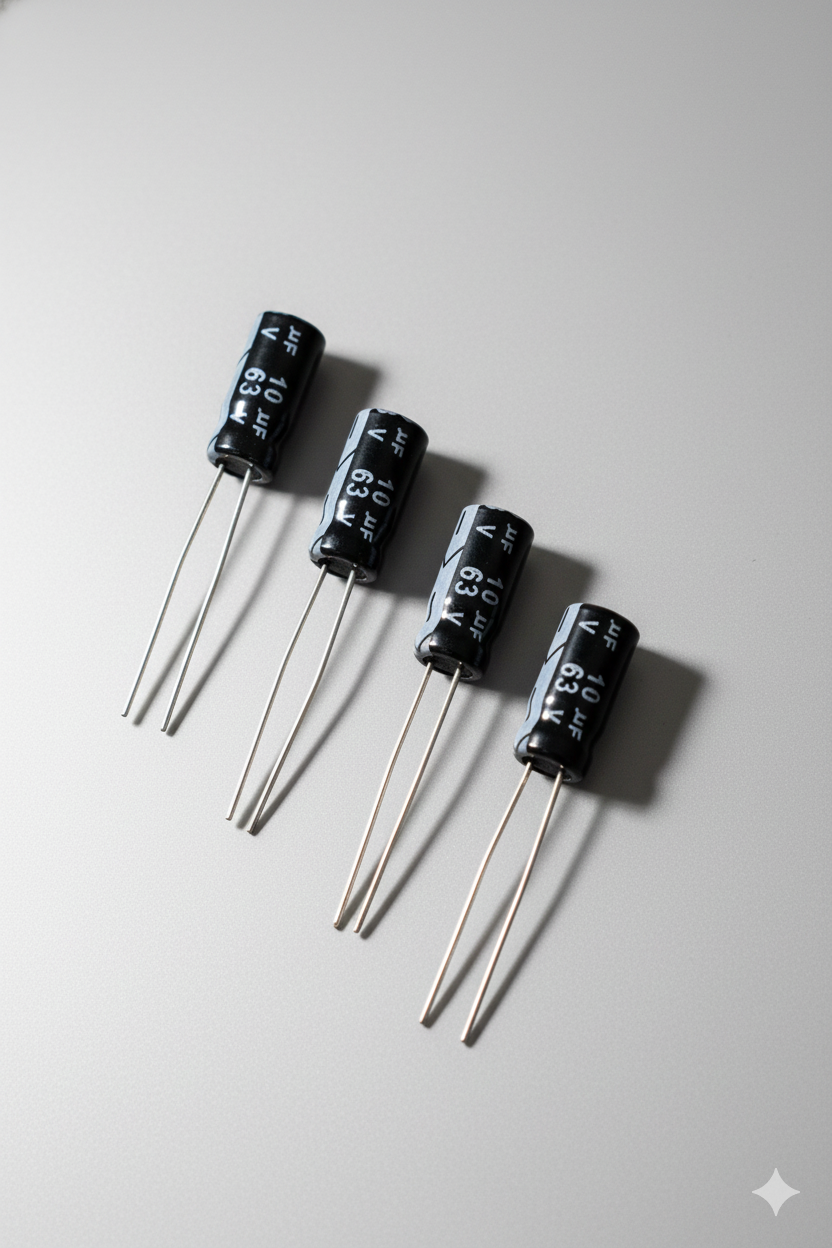

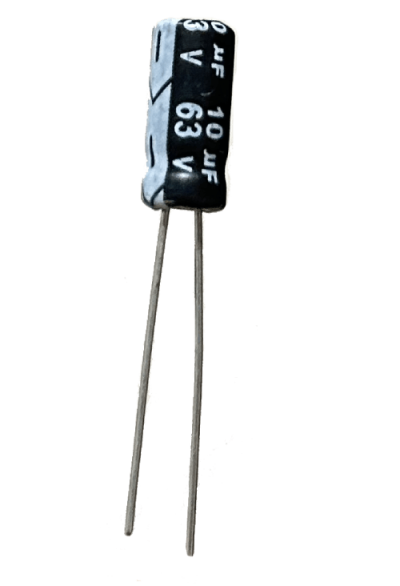

10uf 63V Electrolytic Capacitor
Sale price
Rs. 5.00
Regular price
Rs. 9.00
Skip to product information
10uf 63V Electrolytic Capacitor
Sale price
Rs. 5.00
Regular price
Rs. 9.00
📋 Technical Specifications
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Rated Voltage | 63 V DC |
| Tolerance | ±20% |
| Capacitor Type | Aluminum Electrolytic |
| Polarity | Polarized |
| Mounting Type | Through Hole (Radial Lead) |
| Lead Material | Tinned Copper |
| Lead Spacing | 3.5 mm – 5 mm (approx.) |
| Operating Temperature | –40°C to +105°C |
| ESR | Low ESR |
| Lifetime | ≥ 2000 Hours at 105°C |
| Leakage Current | ≤ 0.01CV or 3µA (whichever is greater) |
| Dielectric | Electrolytic |
| Case Color | Black with White Marking |

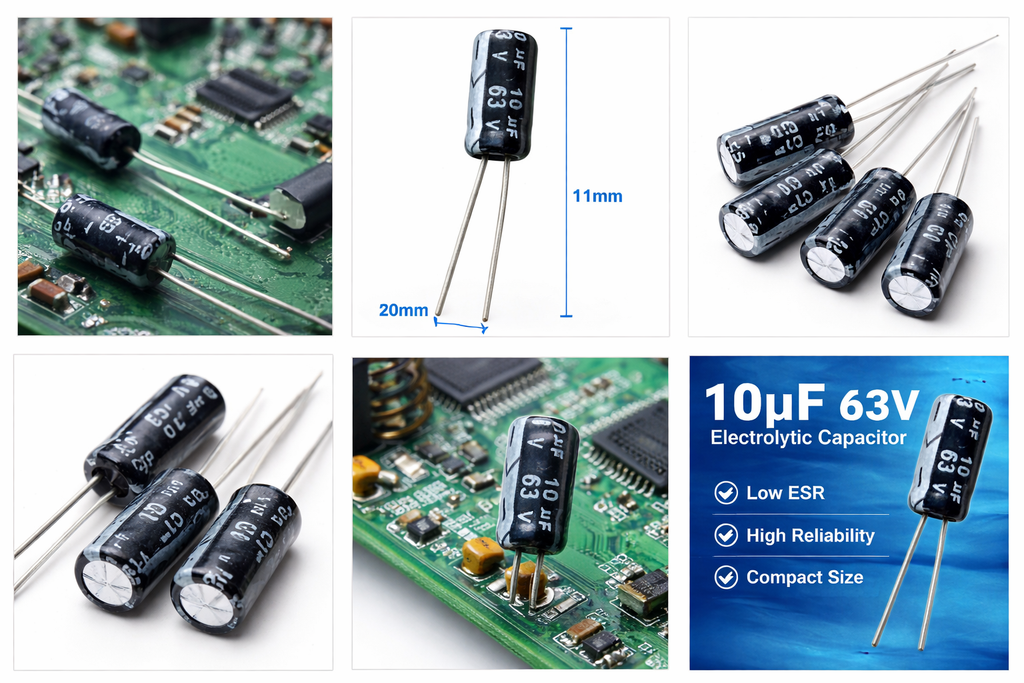

📏 Mechanical Dimensions (Approx.)
| Dimension | Size |
|---|---|
| Diameter | 5 mm |
| Height | 11 mm |
| Lead Length | 20 – 25 mm |
